HUD Reflective Mirror Inspection System

Model : HRMI-1000

Automobile HUD is the high-tech automotive display device that transfer the current rate, amount of fuel remaining, navigation, call history list, music list, etc on the front window regardless of the seperate device in the car and demand is becoming increasingly high. HUD consist the projector, lens, mirror that reflect the video image on the window. HRMI-1000 for detecting the defects of the finished car's C-Mirror for HUD is the system that can check for C-mirror's distortion and defects by analysing the video and acquiring the projected video image on C-Mirror as applying the Machine Vision System.

•

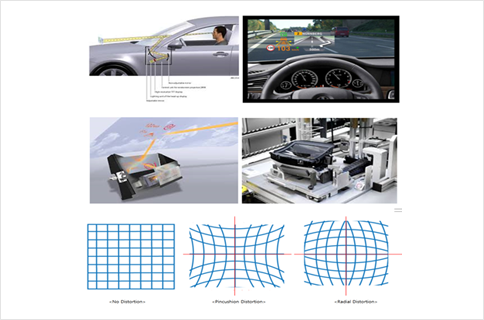

  Vehicle HUD Structure and Image Distortion

•

  HUD Mirror Projection Image for Vehicle
