Vibration Measurement System
Model : VMS-150, VMS-Manager

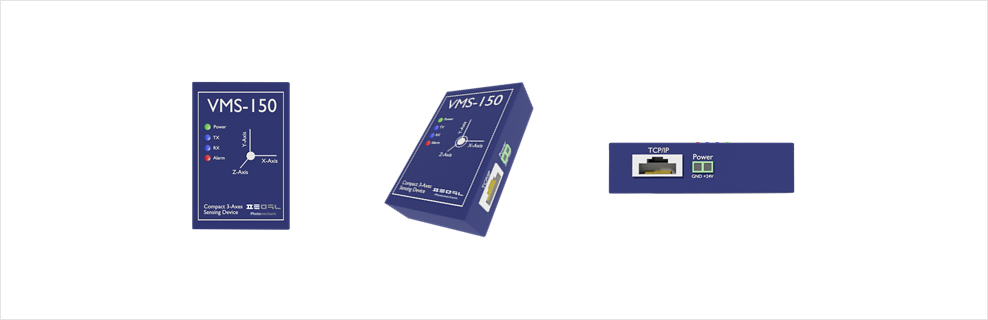

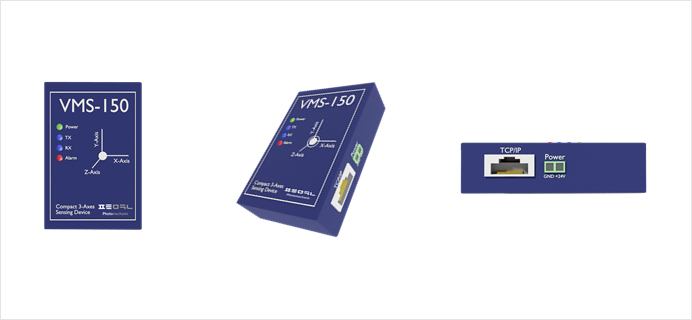

VMS-150
VMS-150 is a sensor designed for real-time monitoring of vibrations in three axes (X, Y, Z axes). The sensor enables simultaneous monitoring of vibrations, providing accurate and instant data. Real-time data acquisition, storage, and analysis are facilitated through the dedicated VMS Manager software.
This product offers high performance at a competitive price by replacing traditional high-cost analog Piezo Sensors with MEMS-based sensors. Additionally, it integrates a module for data communication. The VMS-150 is widely adopted in various industries, including semiconductor, FPD (Flat Panel Display), LED, robotics, and production systems. It excels in predicting and preserving potential issues in advance, contributing to the proactive maintenance of the current systems.
General Specification
- Accelerometer
- MEMS Type
- Sensing Axes
- X, Y, Z 3-Axes
- Sampling Rate
- 5kHz /Ch
- Measuring Range
- ±2g, ±4g, ±8g
- Bandwidth
- 0.5~672㎐
- Noise density
- 220㎎√㎐
- Operating Temp
- -40 ~ + 85℃
- Interface
- TCP/IP
System Layout
- Height
- 26.2mm
- Width
- 48mm
- Length
- 69mm
- Length + Bracket
- 89mm
- Weight
- 150g
VMS-Manager
VMS-Manager visualizes, stores, and analyzes data from VMS in real time. Additionally, you'll be able to set up a variety of user settings It serves to manage the vibration characteristics.
- Real-time vibration measurement and data recording
- Real-time vibration summary data recording
- Real-time acceleration -> displacement conversion
- Vibration measurement data PLC transmission
- FFT Analysis in Real Time
- Peak to Peak Analysis & Indicating Alarm
- RMS Analysis & Indicating Alarm
- Crest Factor Analysis & Indicating Alarm
- Operating System : Windows 10
- Software Filter Included
- MAX VMS 8 Set Linked in TCP/IP Network
<Application Software for VMS-150>

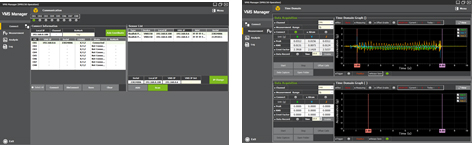

Network Broad Casting Function: Default 8 VMS in Network

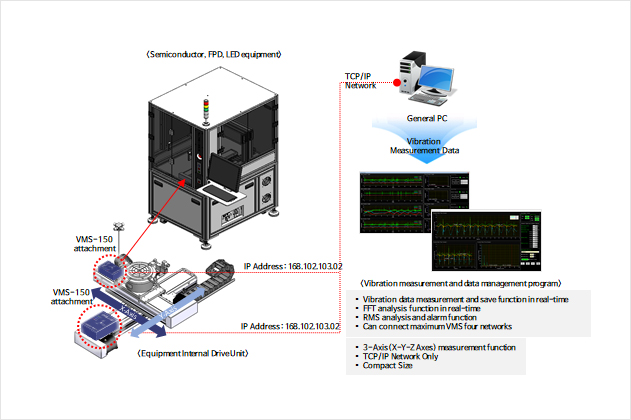

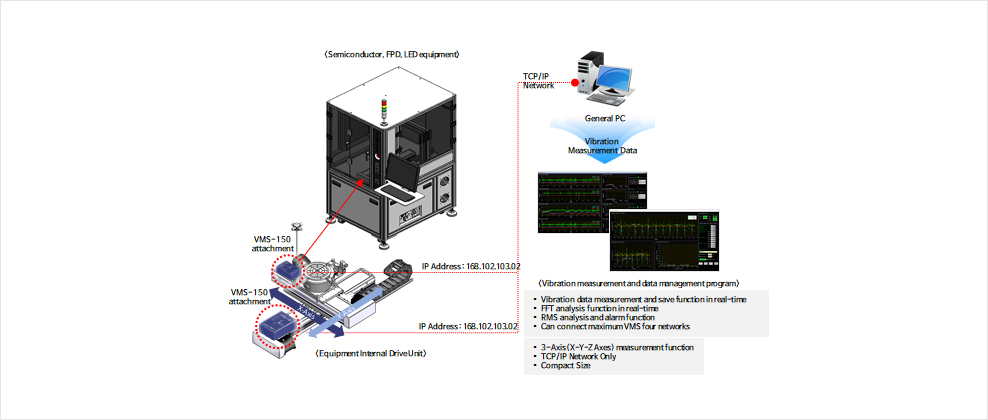

The VMS-Manager can connect up to 8 VMS devices to the network through TCP/IP. It offers a customizable feature that allows users to monitor real-time data for 1 to 8 devices based on their specific preferences.

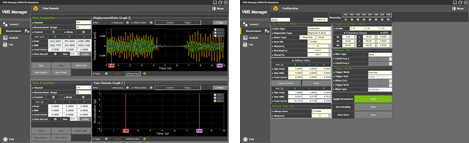

Real Time Vibration Monitoring, Save, Warning Function(P2P, RMS, Crest Factor)
For those seeking real-time monitoring of vibrations within the system, the VMS-Manager includes Peak-to-Peak, RMS (Root Mean Square), and Crest Factor configuration options. These settings allow users to monitor and record the system's condition on an event basis.

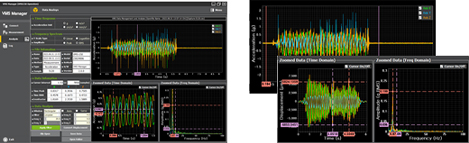

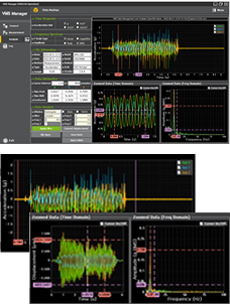

Vibration Data Analysis using FFT, Software Filter, other functions
Regarding analysis capabilities, the VMS-Manager is equipped with a variety of functions, including vibration domain and scale adjustment, FFT (Fast Fourier Transform), software filtering, displacement transformation, and more. This allows users to operate the VMS-Manager according to their specific needs.
